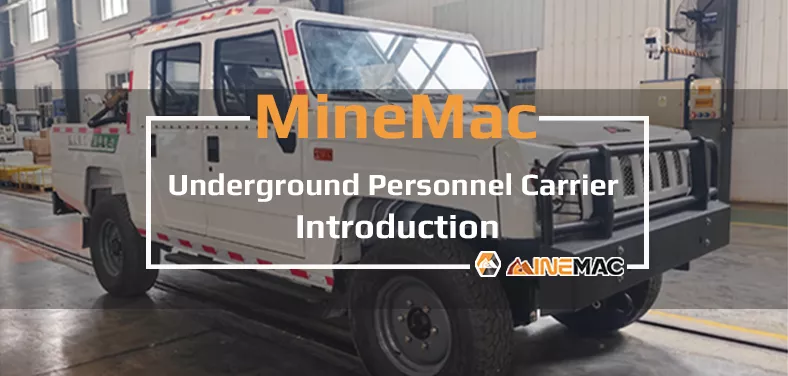

Underground Personnel Carrier

The personnel carrier series is a compact transport vehicle designed for mining operations, designed to safely and efficiently transport miners, their tools, and equipment. These vehicles are highly maneuverable and capable of navigating the confined and complex environments of underground mines, ensuring worker safety and productivity. They typically feature a comfortable cab that can accommodate multiple workers and provides ample storage for essential tools and equipment. Powered by an explosion-proof lithium battery pack and powered by an explosion-proof AC motor, the vehicles consist of a frame, body, steering system, drive system, wheels, suspension, braking system, hydraulic system, power battery, and electrical system. They are primarily used for personnel transport, dispatching, command, and rescue operations in both underground and surface mines.

As part of EMAC, ConeMac integrates DCEC engines, provides industrial power pack solution that integrated with air intake, air exhaust, cooling system, control system, transmission and hydraulic accessories, We also supplying special products such as explosion proof engine, generator and water pump set, as well as ultra-low temperature condition engine power pack.

The company provides customers with full life cycle services, from design to power system supply, installation and commissioning, to after-sales service training and spare parts supply, as well as troubleshooting and overhaul technical support. This full range of services ensures that customer equipment maintains high reliability and long-term operating efficiency during use.

These comprehensive power systems and service capabilities enable Duramac to occupy an important position in the field of construction machinery and provide advanced solutions for future electrification trends.

Advantages of Underground Personnel Carrier

  • Convenient and Safe: Low floor design, the space is large, improving occupant boarding, convenience, and safety.
  • Environmental Protection: Using power lithium battery for power supply, zero emissions, low noise, energy conservation and environmental protection.
  • Strong Power: Using variable frequency speed regulation system and high effcient drive system, powerful.

General Specifications of Underground Personnel Carrier Series

Passenger Capacity: 2 – 19 persons

Engine Power:

150 – 300 HP

Maximum Speed:

30 – 50 km/h

Ground Clearance:

300 – 400 mm
WLR-2 2 seats
WLR-5 5 seats
WLR-10 10 seats
WLR-19C 19 seats
WLR-19E 19 seats

Truck Model

Capacity/seats

0 5 10 15 20 25 30 35

Underground Personnel Carrier

This is the list of all series of Underground Personnel Carrier.

WLR-2 | 2 seats

WLR-2 | 2 seats

Truck Model: WLR-2
Vehicle Size: ≤3950 * 1500 * 1650 mm
Minimum Ground Clearance: 180 mm
Rated Load Capacity: 300 kg
Curb Mass: ≤2500 kg

WLR-2 | 2 seats

WLR-5 | 5 seats

Truck Model: WLR-5
Vehicle Size: ≤5350 * 1840 * 1950 mm
Minimum Ground Clearance: 200 mm
Rated Load Capacity: 500 kg
Curb Mass: ≤3500 kg

WLR-10 | 10 seats

WLR-10 | 10 seats

Truck Model: WLR-10
Vehicle Size: ≤5790 * 1980 * 1950 mm
Minimum Ground Clearance: 190 mm
Rated Load Capacity: 500 kg
Curb Mass: ≤6000 kg

WLR-10 | 10 seats

WLR-19C | 19 seats

Truck Model: WLR-19C
Vehicle Size: ≤6200 * 2000 * 2200 mm
Minimum Ground Clearance: 180 mm
Rated Load Capacity: 1520 kg
Curb Mass: ≤5480 kg

WLR-10 | 10 seats

WLR-19E | 19 seats

Truck Model: WLR-19E
Vehicle Size: ≤6200 * 2000 * 1960 mm
Minimum Ground Clearance: 190 mm
Rated Load Capacity: 1520 kg
Curb Mass: ≤6100 kg
