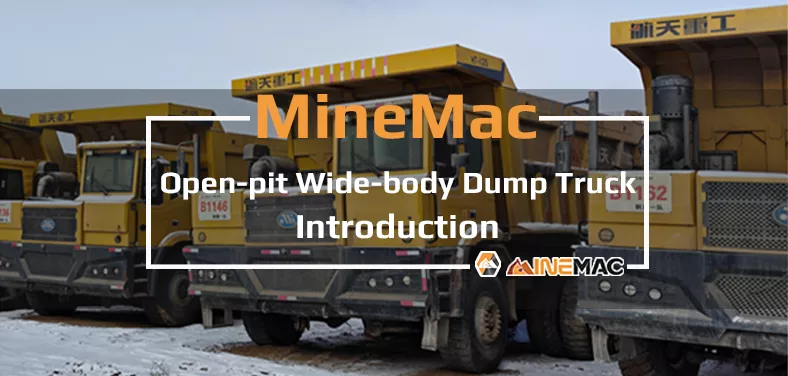

Open-pit Wide-body Dump Truck

Our company has developed a series of mining wide-body dump truck based on advanced design concepts and aerospace level processing and manufacturing quality control measures based on the transportation conditions and needs of mines.This series of heavy-duty transport vehicles, boasting military-grade quality, is designed specifically for open-pit mining operations. Its frame features a large-section closed box structure and fully welded, robust construction. Its robust design and high load-bearing capacity ensure it withstands long periods of high loads in complex and harsh mining environments. It can carry tens of tons of ore or material in a single trip, significantly improving mining efficiency. Its specially reinforced tires and chassis are engineered to handle the complex terrain of open-pit mines, including steep slopes, loose soil, and hard rock.

As part of EMAC, ConeMac integrates DCEC engines, provides industrial power pack solution that integrated with air intake, air exhaust, cooling system, control system, transmission and hydraulic accessories, We also supplying special products such as explosion proof engine, generator and water pump set, as well as ultra-low temperature condition engine power pack.

The company provides customers with full life cycle services, from design to power system supply, installation and commissioning, to after-sales service training and spare parts supply, as well as troubleshooting and overhaul technical support. This full range of services ensures that customer equipment maintains high reliability and long-term operating efficiency during use.

These comprehensive power systems and service capabilities enable Duramac to occupy an important position in the field of construction machinery and provide advanced solutions for future electrification trends.

Advantages of Open-pit Wide-body Dump Truck

  • High Strength & Reliability: The frame features a large-section enclosed box structure with full-penetration integral welding, delivering high load capacity and extended service life.
  • Comfort & Flexibility: Equipped with a MacPherson independent hydro-pneumatic front suspension and a double-axle five-link balanced hydro-pneumatic mid/rear suspension, it offers enhanced load capacity and superior ride comfort.
  • Quick Change & Control: Supports rapid battery swap(hybrid models exclude swap), delivers intelligent control strategies for diverse operating conditions, and achieves over 40% lower fuel consumption compared to diesel engines through hybrid technology.

General Specifications of Open-pit Wide-body Dump Truck Series

Engine Power: 400 – 600 HP
Payload Capacity: 30 – 100 tons
Cargo Box Volume: 20 – 50 cubic meters
Maximum Speed: 50 – 70 km/h
Max Gradeability: 30 – 40 %
HT115 80 T
HT115E 80 T
HT115EV 80 T
HT125 90 T
HT125E 90 T
HT130HEV 90 T
HT130HEVA 90 T

Truck Model

Vehicle Weight/T

0 15 30 45 60 75 90 105
Open-pit Wide-body Dump Truck Catalogue

Open-pit Wide-body Dump Truck

This is the list of all series of Open-pit Wide-body Dump Truck.

HT115 | 80T

HT115 | 80T

Truck Model:HT115
Wheelbase: 3800+1800 mm
Vehicle Weight: 35000 kg
Payload: 80000 kg
Min. Ground Clearance: 380 mm

HT115E | 80T

HT115E | 80T

Truck Model:HT115E
Wheelbase: 3800+1800 mm
Vehicle Weight: 35000 kg
Payload: 80000 kg
Min. Ground Clearance: 380 mm

HT115E | 80T

HT115EV | 80T

Truck Model:HT115EV
Payload: 80000 kg
Min. Ground Clearance: 380 mm
Rated Power:2*250 kW
Max.input torque: 4800 Nm

HT125 | 90T

HT125 | 90T

Truck Model: HT125
Wead Weight: 35000 kg
Rated Load: 90000 kg
Engine Model: YUCHAI YCK560-GT30
Rated Speed: 1900 r/min

HT125E | 90T

HT125E | 90T

Truck Model: HT125E
Wead Weight: 35000 kg
Rated Load: 90000 kg
Rated Speed: 1900 r/min
Max.Torque: 2480+2800 Nm

HT125E | 90T

HT130HEV | 90T

Truck Model: HT130HEV
Wead Weight: 40000 kg
Rated Load: 90000 kg
Max.Torque: 3200/1100-1500 Nm
Rated Speed: 1900 r/min

HT130HEVA | 90T

HT130HEVA | 90T

Truck Model:HT130HEVA
Min. Ground Clearance: 450 mm
Fuel Tank:900 L
Rated Power:570 kW
Max.input torque: 4800 Nm
